Offshore Pile Driving – Choosing the Optimal Hydraulic Hammer for your Project
When it comes to offshore pile driving, using the biggest hammer at full power is not always the best approach. Instead, selecting the optimal hydraulic hammer size and leveraging the right technology and crew expertise ensures flexibility, accuracy, and efficiency during pile installation. This approach helps reduce soil-specific risks and geohazards such as pile refusal and pile run while improving overall installation times.
At the heart of offshore piling operations is the hydraulic underwater hammer, a flexible and customisable solution. With experienced offshore technicians capable of adjusting hammer force in real time, operators can quickly respond to challenges and avoid costly delays.
Menck, Acteon’s Marine Foundations business line, provides a full range of hydraulic hammers to meet diverse project requirements, from small conductor installations to record-breaking monopile driving in offshore wind farms.
Flexible and Customisable Hydraulic Hammer Technology
Modern offshore piling hammers are tailored to each project through a combination of:
- Control and monitoring systems – extending workable hammer energy ranges and improving accuracy.
- Noise mitigation technology – integrated systems reduce underwater noise before it enters the marine environment, ensuring compliance with regional legislation.
- Sustainable features – including environmentally friendly lubricants and efficient drive systems that lower emissions and extend operational uptime.

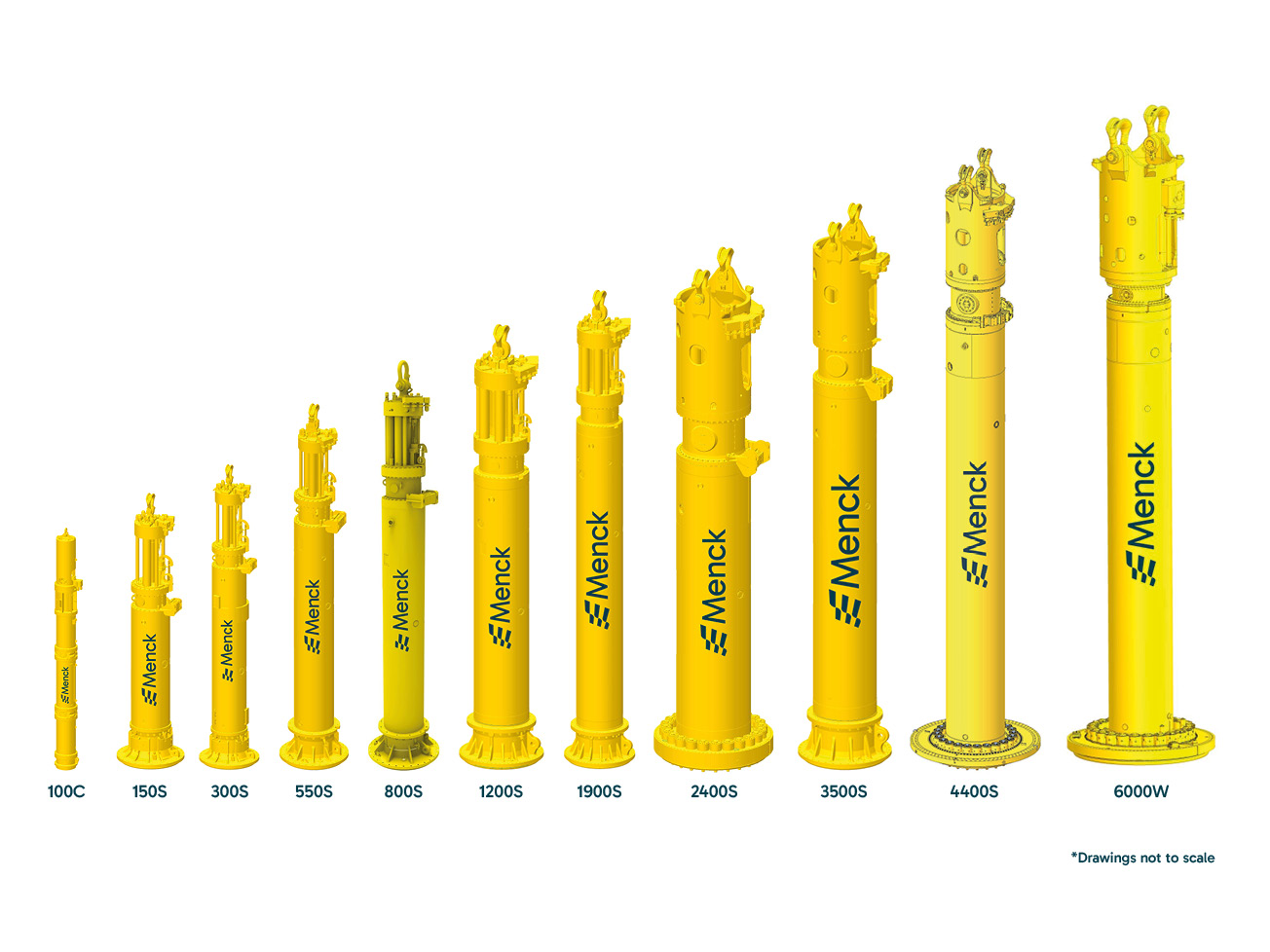

Hydraulic double acting impact hammer range
100 kJ – Small, Lightweight Solutions
MHU 100C: Originally designed for offshore conductor installation, this light, versatile hammer is ideal for small subsea pile installation and onshore construction projects. Built to withstand harsh offshore conditions, it delivers reliable and consistent performance.
150 – 300 kJ – Shallow and Deepwater Applications
MHU 150S: Suitable for above-water and shallow subsea operations (to 300 m water depth).
MHU 270T / 300S: Adaptable to pile sizes from 0.5 m to 2.2 m OD. When paired with Menck’s deepwater girdle-type powerpack, these hammers can support installations down to 3,000 m (10,000 ft)
400 – 550 kJ – Reliable Mid-Range Hammers
Designed for above, shallow, and deep water, these hammers combine ease of use, enhanced safety features, and improved energy efficiency to maximise piling performance.
800 kJ – Large Pile Installations
MHU 800S: Used for shallow water with pile sizes from 1.1 m to 5.2 m OD.
MHU 750T: Designed for deepwater pile driving.
Both can operate at depths up to 300 m, or 3,000 m with MENCK’s powerpack.
1200 – 1900 kJ – High-Power Hydraulic Hammers
MHU 1200S and 1900S: Subsea hammers offering adjustable energy (10%–100%) through the MHC 21 hydraulic control system. Real-time monitoring and double-acting hydraulic drive allow greater energy output with lower hammer weight.
2400 – 4400 kJ – Heavy-Duty Foundation Installation
MHU 2400S, 3500S, 4400S: Suitable for large subsea foundation projects.
MHU 4400S “Gentle Giant”: Provides up to 4400 kJ, successfully used for 8 m diameter monopile installations. Its integrated system setup reduces personnel requirements and supports carbon efficiency through quieter technology.
6250 kJ – The Largest Offshore Wind Hammer
MHU 6000W: The world’s largest impact-driving wind hammer, delivering 6250 kJ of energy for monopiles up to 9 m diameter and beyond.
Features include:
- Double-acting hydraulic drive.
- Closed-loop control system.
- Shock absorber cartridges.
- Advanced safety mechanisms.
This hammer is connected to Menck’s real-time digital and data platform, enabling operators to access decades of piling expertise, monitor operations remotely, and ensure full situational awareness. It extends uptime by 200% compared with conventional hammers while reducing wear and underwater noise.
Why Menck Hydraulic Double acting impact hammers Lead Offshore Piling
Menck combines decades of offshore pile driving expertise with innovative technology to:
- Deliver customisable hydraulic hammers from 100 kJ to 6250 kJ.
- Support both offshore renewables (wind farm monopiles) and oil and gas subsea foundations.
- Provide real-time digital support, enhancing efficiency and reducing downtime.
- Integrate sustainable technologies to minimise environmental impact.
By offering hammer solutions across all energy ranges and water depths, we ensure offshore operators can achieve efficient, safe, and sustainable pile installation.
Acteon has provided the hammers for the installation of nearly half of all offshore wind farms installed globally, including the first US offshore wind farm in Block Island, Rhode Island.
